Description

CLEO – LMA 26 –

Specifications
Vessel type: Motor Sailor
Builder: LM
Make: LM
Model: 26
Year constructed: 1983
Sail number: 111
Registration: 155350
Registry: UK SSR
Berths: 3
No. of engines: 1
Engine model: Bukh DV 20
Engine power: 15
Engine hours: 1078
Fuel type: Diesel
Drive type: Sail drive
Length over all: 7.95m
Beam: 2.9m
Maximum draft: 1.25m
Hull material: Glass Fibre
Hull colour: White
Keel type: Fin Keel
Fuel capacity: 44 Litres
Water capacity: 44 Litres


Freshwater cooling drained and replaced with 50/50 mixture by Fox’s workshop Nov 18.

New exhaust mixing elbow and hose fitted by Fox’s workshop Nov 18.

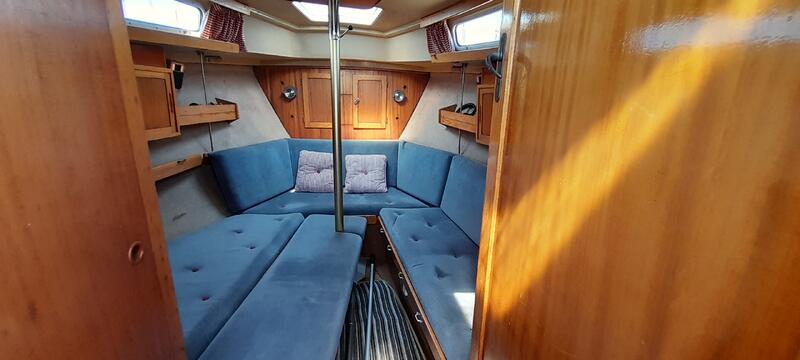

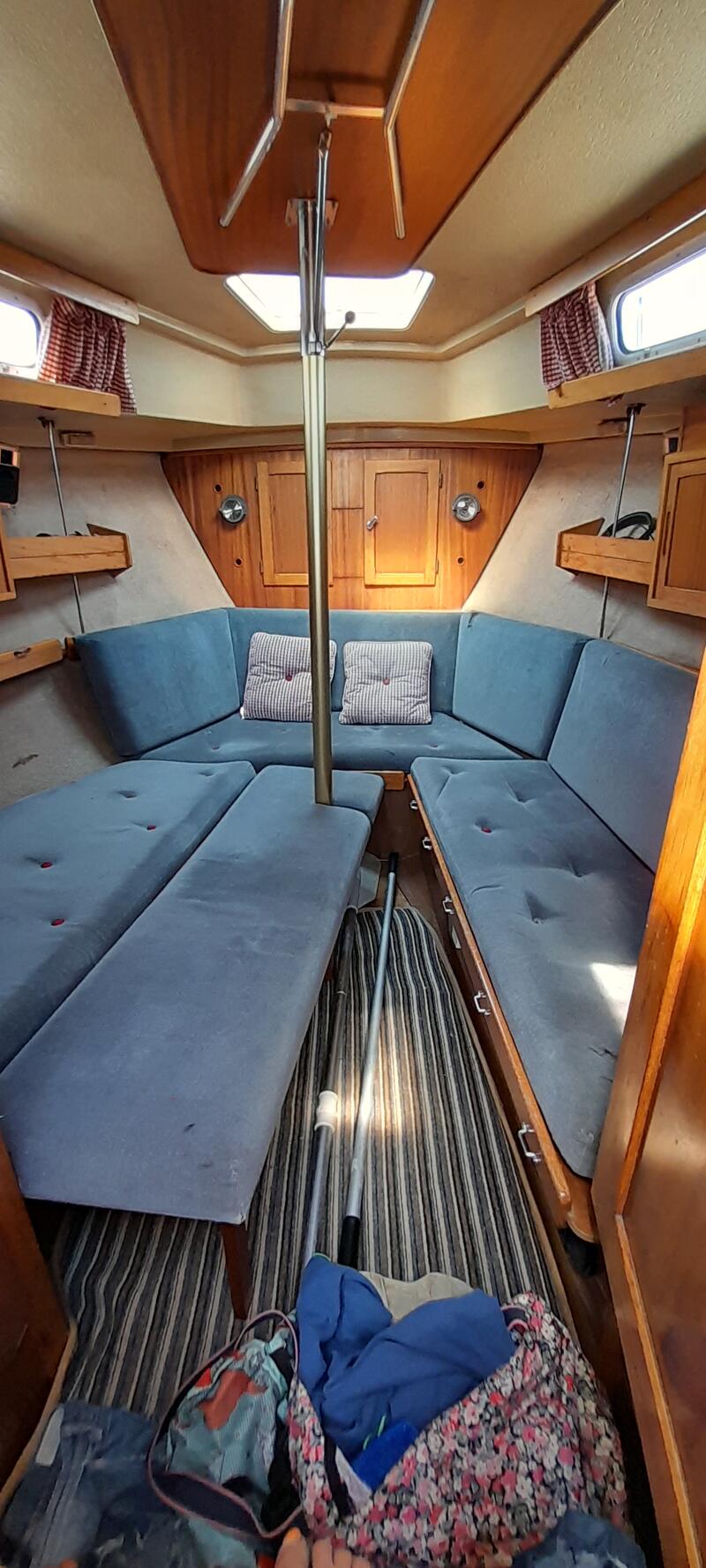

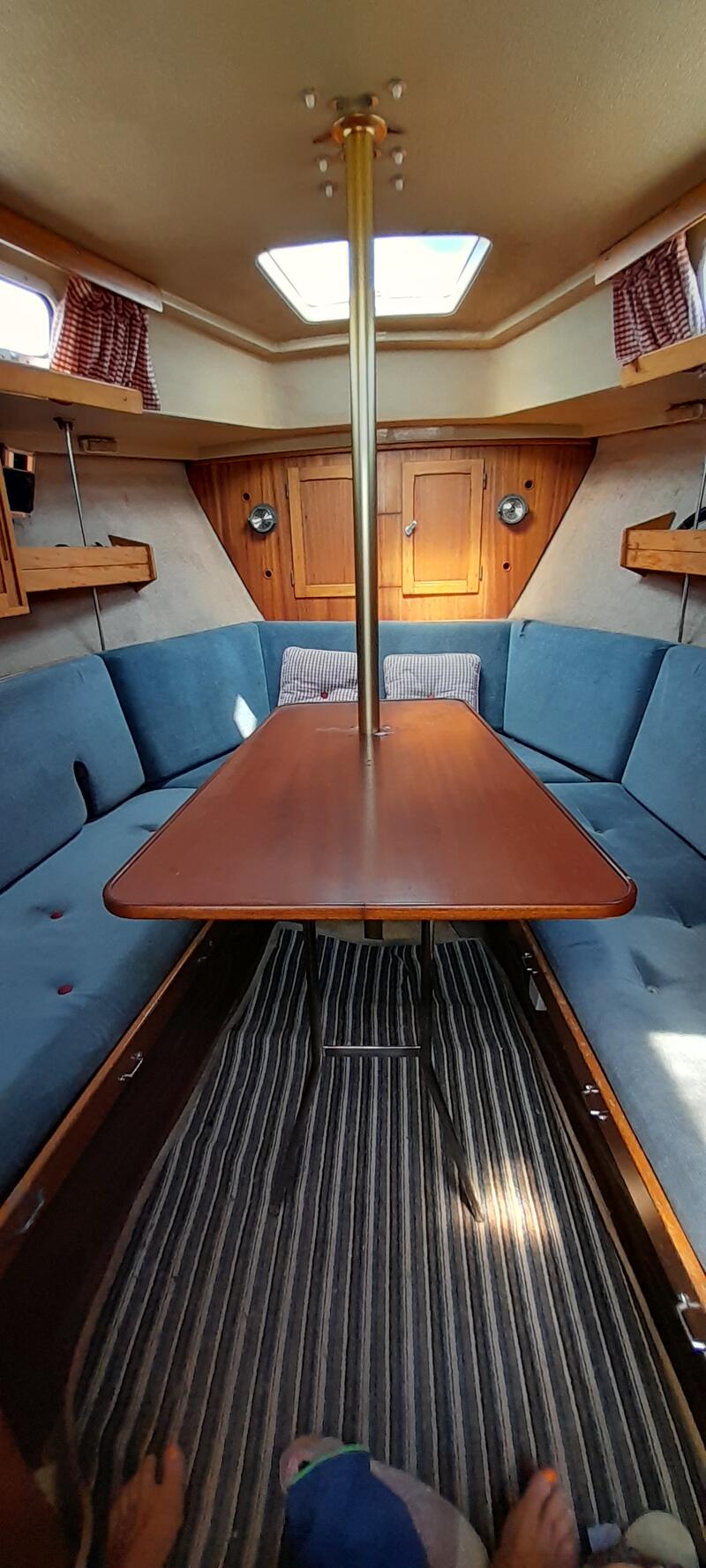

Light and airy saloon with large drop down table (table attached to mast compression post and stores against saloon ceiling - see photos).
Opaque fore hatch.
Re-upholstered in 2016. Little use since.
Saloon converts to double and large single berths.

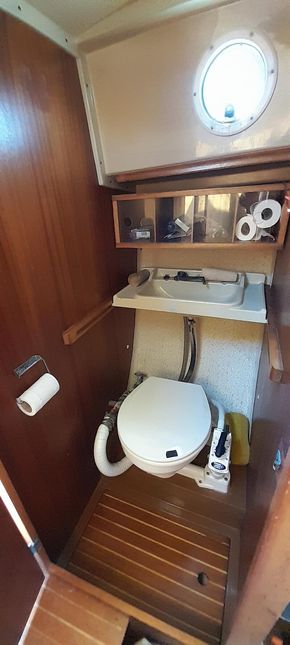

Large heads compartment with Jabsco large bowl sea toilet. Sink with pressurised cold water. Storage behind sink. 12 volt light and opening port.

Forepeak storage behind removable sapele mahogany bulkhead.

Large hanging locker with rail and shelves.

Abundant storage under seating

Abundant storage in lockers above seating.

Door to wheelhouse.

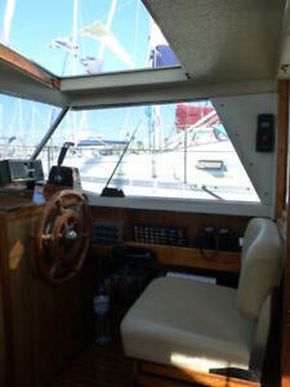

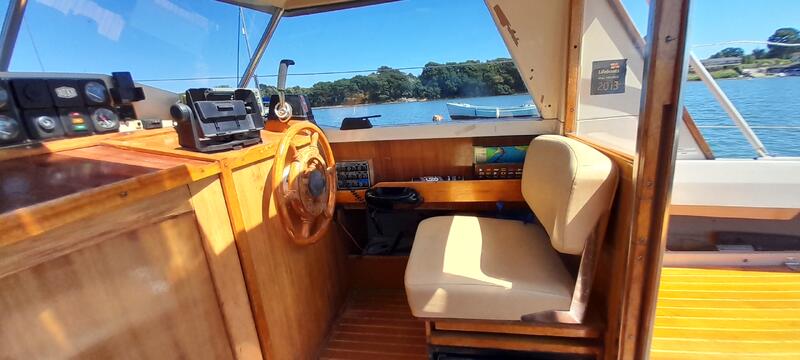

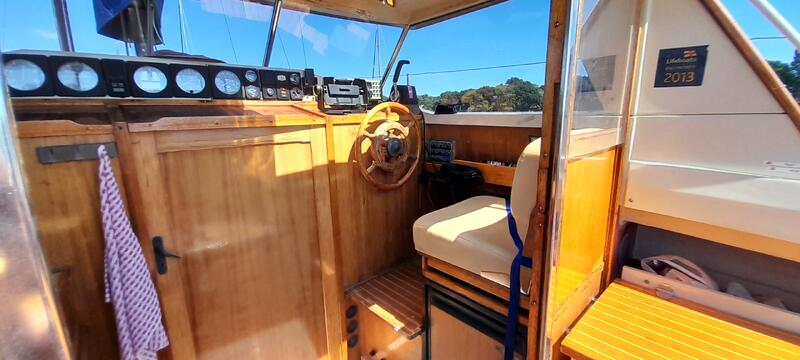

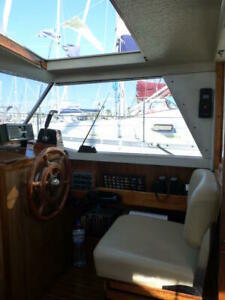

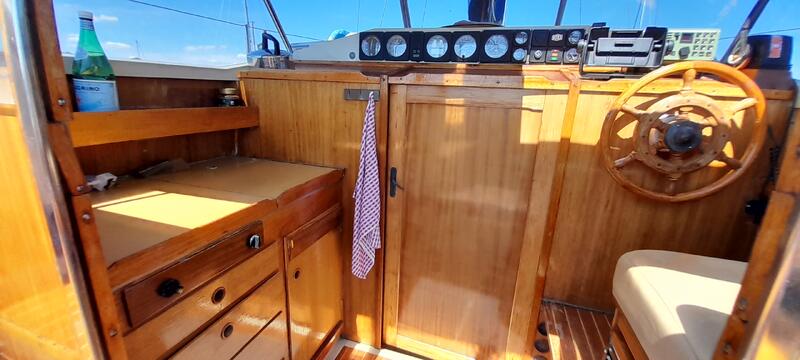

Wheelhouse with helm position to starboard. Refurbished helm seat 2016. Sliding ‘sunroof’.

Lifting wheelhouse floor to access batteries and additional storage.

Bulkhead mounted semi rotary hand bilge pump with handle.

12v freshwater pump to galley and heads.

Access to bilge (bilge area is very shallow forward of the engine compartment).

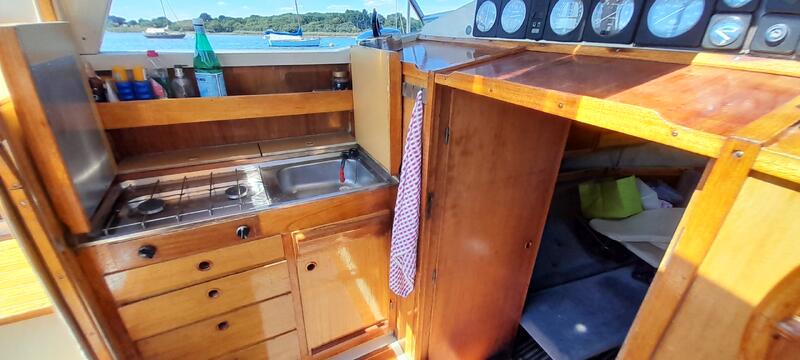

Galley to port. Stainless steel sink with pressurised cold water. Lockers below and storage behind.

44 litre fresh water tank.

Two burner Cramer hob with four storage drawers below. Additional storage behind.

Waeco fridge.

Drop down door with Perspex panel to cockpit.

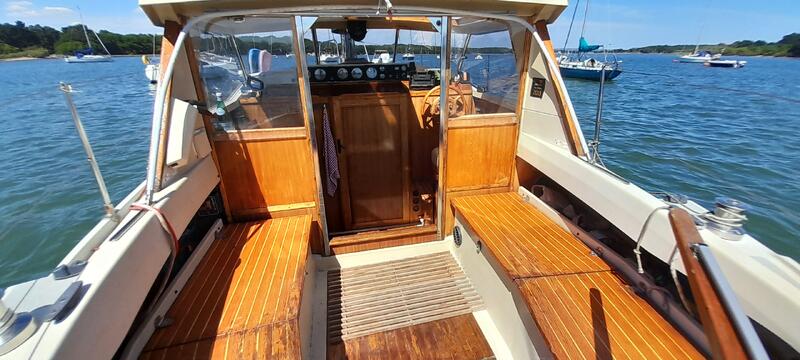

Roomy cockpit with ample storage in four lockers.

Drained grp gas locker to port forward locker.

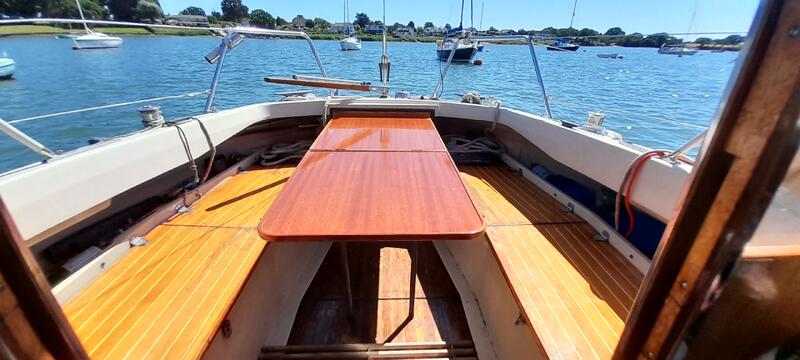

Cockpit table which extends to cater for six.

Cockpit cover with zipped access and clear panels to side and rear. 2016 from original Danish manufacturer.

Cockpit cushions in cream vinyl 2016.

Lifting cockpit floor to access fully sound insulated engine compartment.


Equipment
Classic Sailor compact VHF with handset. Not dsc. can be replaced on negotiation.

VHF antenna mounted on push-pit.

Battery charger.

Depth, wind speed and direction indicators. NOTE: The mast head sensor for wind speed is missing (lost in transit!)

Engine instruments.

Fresh and raw water temp gauge.

12v lighting throughout

Two new batteries. Two battery isolating switches.

Shore power to cockpit socket on port side.

Removable tiller.

Lever in cockpit to disconnect wheel steering. This gives more feel at the tiller and prevents wheel from spinnning!

Masthead tricolour.

Nav light at pull-pit.

Stern white nav light at push-pit.

Steaming light.

Anchor light.

Paraffin fuelled forced air heating system. Outlets in saloon and cockpit. Never used so will require recommissioning.

Stainless steel charcoal bbq mounted on push-pit.


Sails & Spars
Anodised mast, boom and whisper pole.

Mast lowering equipment.

Sails in good condition. Main (no: 111) and Genoa. One reefing point led to cockpit.

Oversize sail cover in navy blue with Tenax fasteners from 2016.

Genoa and main halyards to cockpit.

Main sheet on wheelhouse roof, no traveller.

Roller furling Genoa with furling line to cockpit.

Fortress FX 16 Aluminium anchor and approx 50m chain.

Specifications

Construction

Accommodation
The seating deals up to three docks in the forepeak, bar and cockpit with good headroom. Saloon consisting of two settee docks (seaport side converts to a double dock) either side of a central desk mounted on the mast tender with various stowage safes and the forepeak bulkhead folds down to form a decent double V dock with tailored mattress. Heads room aft to seaport provisioned with a marina toilet and sliding washbasin. Holding basin 140 litres. Large hanging safe aft to starboard. Companionway steps up to the wheelhouse with helm position to starboard and galley provisioned with a 2-burner gasoline cooker, small electric oven and grill sink, refigerator and ample stowage crockery included. Large aft cockpit with two settee docks either side allowing the cockpit to be adapted for many uses such as dining alfresco, fishing or sleeping on warm summer nights. Pressurised water supply.

Mechanical Systems
Located beneath cockpit sole, Bukh 2-cylinder 20hp diesel engine last serviced 2019. Sea water cooled. Single lever controls with electric start. Saildrive and bellow serviced 2010 to fixed 3-bladed propeller. 140 fuel basin. Full engine instrumentation. Last out of water service October 2019.

Electrical Systems
2 x 12v Batteries charged via engine alternator, solar panel, gust generator. Shorepotential unit requires fixing with fresh connection and RCD, with ring mains. Full cabin beaming.

Deck Equipment
Anchor Chain/Warp Mainsail cover Cockpit enclosure Boarding ladder Fenders Mooring Warps

Navigation Equipment
Compass VHF Radio

Safety Equipment
Fire blanket Gas alarm Smoke alarm Deck beam First aid kit

History and Construction

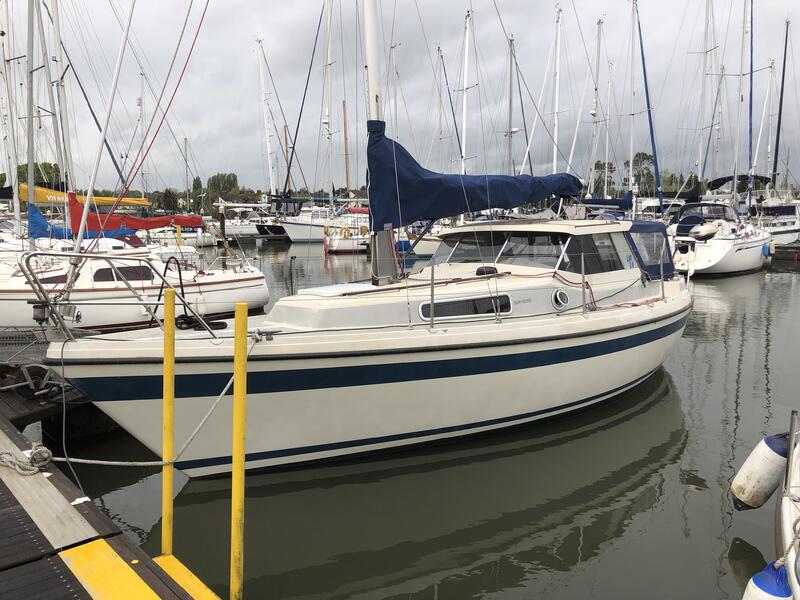

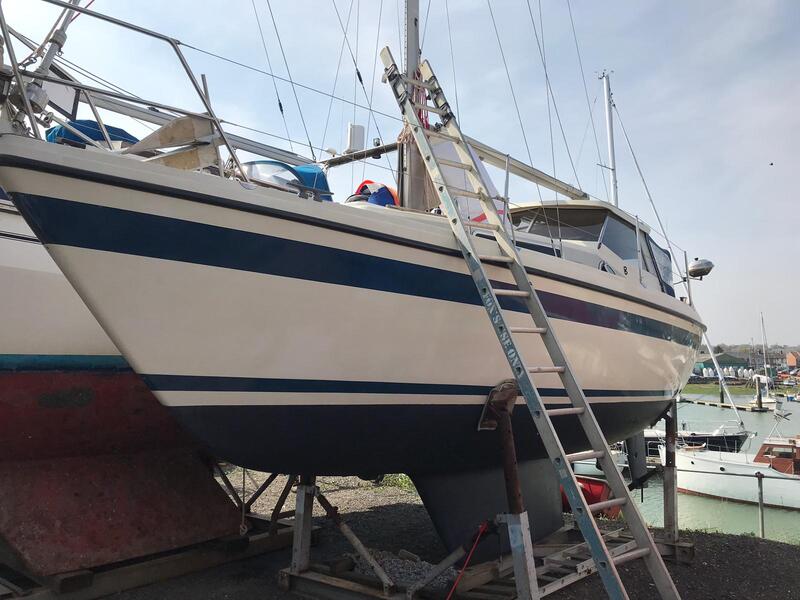

LM 26 manufactured in 1983 by LM Glass fibre A/S to their own design. White GRP painted body with dark blue sheer line. White GRP superstructure and decks with moulded non-slip surfaces. Encapsulated fin keel with lead and iron ballast. Wheel and tiller navigation to a partially skeg hung semi-balanced rudder. Aft self-draining cockpit. Enclosed wheelhouse with full cockpit cover.

Engine(s)

About this LM 26

Remarks :
1983 LM 26

The LM 26 is a typically well-built Scandinavian motor sailer with surprisingly good sailing characteristics thanks to her fin keel and sailing focused hull design. Offering the practicality of a wheelhouse combined with a spacious cockpit, dual steering positions, and versatile interior space they really are an excellent choice. “CLEO” is presented in good condition for her year. Viewing highly recommended.


Accommodation :
The accommodation offers up to three berths in the forepeak, saloon and cockpit with good standing headroom. Saloon consisting of two settee berths (port side converts to a double berth) either side of a central table mounted on the mast support with various storage lockers and the forepeak bulkhead could be adapted to form a decent double V berth. Heads compartment aft to port equipped with a marine toilet and sliding washbasin. Large hanging locker aft to starboard. Companionway steps up to the wheelhouse with helm position to starboard and galley equipped with a 2-burner gas cooker, sink, fridge and ample storage. Large aft cockpit with two settee berths either side allowing the cockpit to be adapted for many uses such as dining alfresco, fishing or sleeping on warm summer nights. Pressurised water supply.


Inventory :
Deck Equipment

Anchor
Chain/Warp
Mainsail cover
Cockpit enclosure
Boarding ladder
Fenders
Mooring Warps
Navigation Equipment

Compass
VHF Radio


Safety Equipment

Fire blanket
Gas alarm
Smoke alarm
Deck light
First aid kit




History & Construction

LM 26 built in 1983 by LM Glass fibre A/S to their own design. White GRP painted hull with dark blue sheer line. White GRP superstructure and decks with moulded non-slip surfaces. Encapsulated fin keel with lead and iron ballast. Wheel and tiller steering to a partially skeg hung semi-balanced rudder. Aft self-draining cockpit. Enclosed wheelhouse with full cockpit cover.


Mechanical :
Sails and Spars

Fractional rigged sloop. Anodised aluminium mast and boom. Stainless steel standing rigging. Terylene running rigging. Slab reefing mainsail. Headsail furling system.

Sails

1 x Mainsail

1 x Genoa



Mechanical Systems

Located beneath cockpit sole, Bukh 2-cylinder 20hp diesel engine last serviced 2019. Sea water cooled. Single lever controls with electric start. Saildrive and bellow serviced 2010 to fixed 3-bladed propeller. 140 fuel tank. Full engine instrumentation. Last out of water maintenance October 2019.



Electrical Systems

2 x 12v Batteries charged via engine alternator. Shorepower system , with ring mains. Full cabin lighting.


Specifications
Engine Horse Power 20
